Drainage and Ventilation
VenTek™ Rainscreen 6mm
- The entangled polymer mesh and breathable fabric combine to establish a drainage plane to allow water to escape and minimize moisture accumulation
- The fabric's low permeability provides enhanced moisture resistance
- The entangled polymer mesh promotes air flow reducing the risk of mold growth, rot and other moisture related damage to the building envelope
- Its configuration supports installation under many absorptive sidings including stucco, brick, cedar fiber cement and stone veneer
- Lightweight rolls provide efficient handling installation
- The 60" rolls minimize seams to allow shorter installation time compared to competitors
For exterior cladding, designed for use under all absorptive sidings including stucco, cedar, stone, and brick.
Technical Data
| Weight | 21 lbs (9.53 kg) per roll 21.84 lbs (9.91 kg) per roll |
| Packaging | Roll 60 in. (152.4 cm) by 50 ft (15.2 m) Roll 48 in. (121.92 cm) by 65 ft (19.81 m) |
| Coverage | 250 ft² (23 m²) 260 ft² (24.15 m²) |
| Thickness | 1/4" (6 mm) 1/4" (6 mm) |
| Fire Performance (ASTM E84) | Class A Fire Rated |
| Water Vapor Transmission (ASTM E96) | 4245 g/(m^2-day) 50% reduction from control |
| Drainage Efficiency (ASTM E2273) | >90% |
| Mold & Mildew Resistance (ASTM D3273) | Rating of 10 (zero mold growth) for all conditions. |
| UV Exposure | 30 Days |
Related Products
Water Drainage and Ventilation

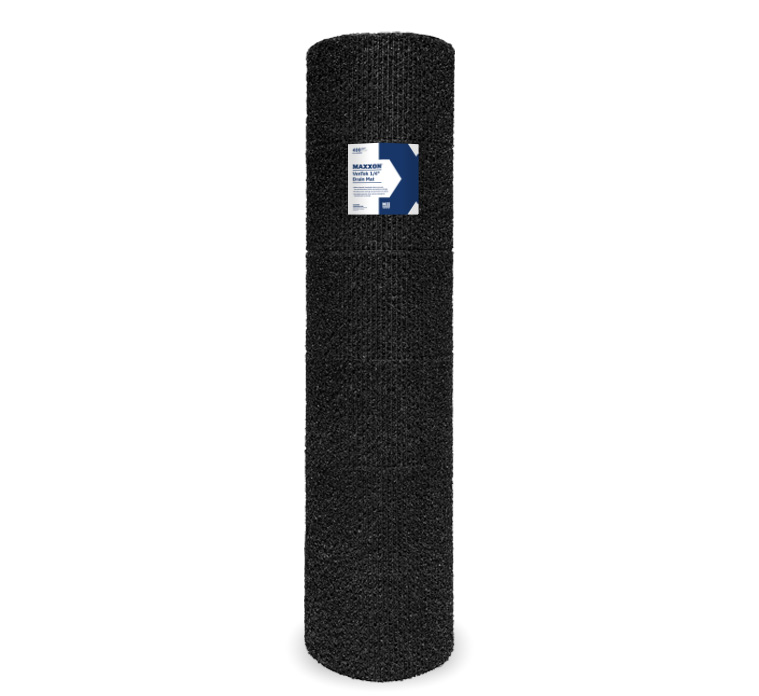

VenTek™ 1/4" Drain Mat
