Patch

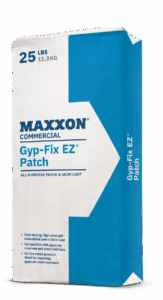

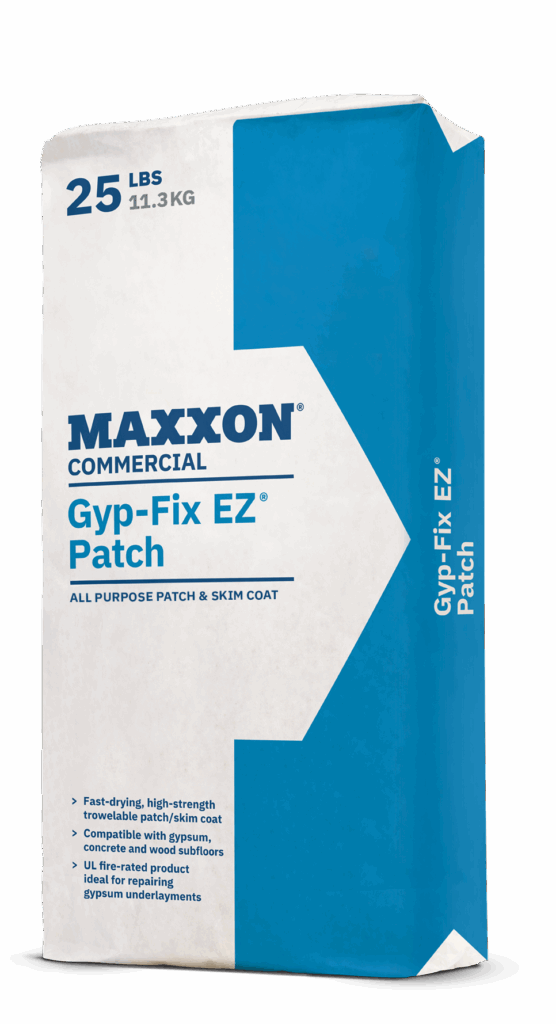

Gyp-Fix EZ
Fire-resistant patch for all subfloors.
- Non-shrinking, high-strength 4,000 PSI, trowelable patch
- Ready for flooring in as little as 40 minutes
- UL fire-resistance rated patch
- Patch and skim coat for repairing imperfections in various subfloors
- Can be featheredged
Application
Patch and skim coat for repairing imperfections in various subfloors
Subfloor
Interior gypsum, concrete, wood.
Patch and skim coat for repairing imperfections in various subfloors
Subfloor
Interior gypsum, concrete, wood.
Technical Data
| Installation Depths | Featheredge to deeper patch areas |
| Compressive Strength | Minimum 4,000 psi (27.6 MPa) |
| Packaging | 25 lb bag |
| Work Time | 20 min |
| Storage Temperature | 50 - 100 °F (10 - 38 °C) |
| Coverage | 1/16 in. (1.6 mm): 62 ft² (5.8 m²) 1/8 in. (3 mm): 31 ft² (2.9 m²) |
| Dry Time | 40 min to set |
| Installation Temperature | above 50 °F (10 °C) |
| Trade Traffic | foot traffic in 40 min |
| Fire Performance (ASTM E84) | Flame Spread – 0 Fuel Contribution – 0 Smoke Development – 0 |
UL Fire Resistance-Rated Designs
UL Design
| G230 | J924 | L212 | L515 | L533 | L551 | L574 | M504 |
| G516 | J927 | L501 | L516 | L534 | L552 | L576 | M505 |
| G524 | J931 | L502 | L517 | L535 | L556 | L577 | M506 |
| G551 | J957 | L503 | L518 | L536 | L557 | L579 | M507 |
| G553 | J958 | L504 | L519 | L537 | L558 | L581 | M508 |
| G560 | J991 | L505 | L520 | L538 | L560 | L583 | M510 |
| G561 | J994 | L506 | L522 | L539 | L562 | L585 | M511 |
| G563 | L006 | L507 | L523 | L540 | L563 | L588 | M513 |
| G566 | L201 | L508 | L524 | L541 | L564 | L589 | M514 |
| G574 | L202 | L509 | L525 | L542 | L565 | L590 | M515 |
| G587 | L206 | L510 | L526 | L543 | L567 | L592 | M517 |
| G597 | L208 | L511 | L527 | L545 | L569 | L593 | M518 |
| J917 | L209 | L512 | L528 | L546 | L570 | M500 | M519 |
| J919 | L210 | L513 | L529 | L547 | L571 | M502 | M530 |
| J920 | L211 | L514 | L530 | L549 | L573 | M503 | M531 |
ULC Design
| I530 | L201 | L512 | M501 | M514 | M521 | ||
| L003 | L511 | M500 | M503 | M520 |
For more information on current UL and ULC Designs, contact Maxxon Corporation.
| Sample USGBC LEED Credit Areas* | ||
|---|---|---|
| Project | Credit | Category |
| Environmental Quality | EQ 2 | Low Emitting Materials |
| EQ 4 | Indoor Air Quality Assessment | |
| EQ 9 | Acoustic Performance | |
| Materials & Resourcs | MR 3 | Building Product Disclosure and Optimization - Sourcing Raw Materials |
* Credits may vary depending on project type and Maxxon products used.
Code Listings:
Underlayments & Patch
